TROTEC BM31WP Moisture Indicator

TROTEC BM31WP Moisture Indicator

$0.00

Fast and non-destructive indication of moisture distribution in near-surface areas

  • Useful pre-tester for CM measurements

  • High-quality sensors and numerous measuring functions

  • Material moisture measuring device as appSensor controlled via smartphone

FIND YOUR TROTEC STOCKIST HERE:

Trotec stockist

Add To Cart

Description

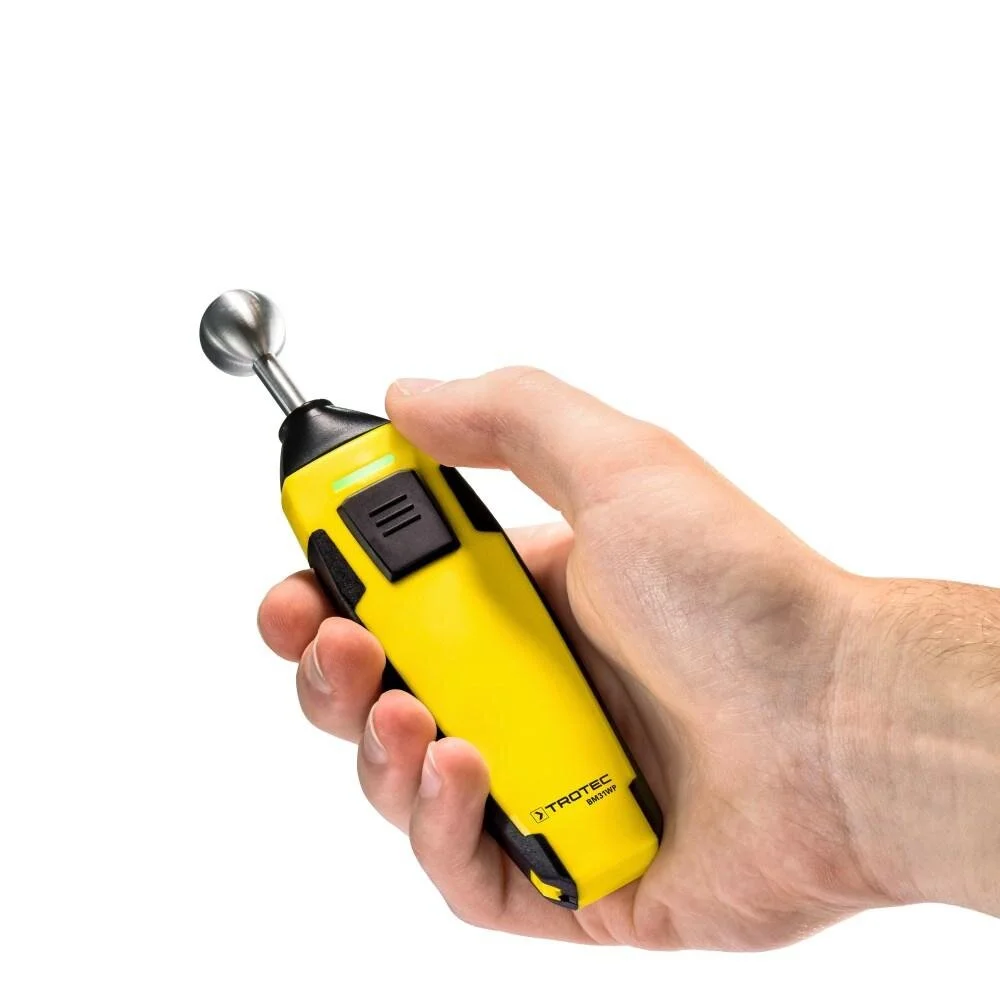

BM31WP MOISTURE INDICATOR

Material moisture measuring device as appSensor controlled via smartphone


The appSensor BM31WP is an electronic moisture indicator that enables you to capacitive determine moisture on the close to surface of wall, ground or ceiling non-destructively in combination with MultiMeasure Mobile App.

When used in combination with the MultiMeasure Mobile app, the appSensor BM31WP is an electronic moisture indicator permitting capacitive, non-destructive, near-surface moisture measurements in walls, floors or ceilings.

The measuring device BM31WP is immediately ready for use, it can be connected to the app without the slightest effort and permits the quick and easy and perfectly non-destructive detection of near-surface moisture distributions in walls, floors or ceilings.

With the BM31WP it is not only possible to quickly indicate different near-surface material moisture values, this appSensor is also especially suited for the preliminary check of the building materials' readiness for covering for CM measurements.

Compared to moisture measuring devices without app users of the BM31WP benefit from the clever combination of appSensor and appertaining, free MultiMeasure Mobile app with numerous additional advantages in terms of flexibility, analysis functions, data control and documentation.

Compare the humidity measurements of an object created at different points in time directly in the app. Or use the measured values for differentiated on-site analyses.

Useful additional features as the alarm function, the export of measured humidity values to a secondary analysis software as well as the report generation function complete the universal application possibilities of the BM31WP and render it a valuable tool for all building diagnostics tasks.

Link your measurement to a photo

Link your measurement to a photo

Define an individual grid for matrix measurements

Define an individual grid for matrix measurements

For a non-destructive detection of near-surface moisture distributions

For a non-destructive detection of near-surface moisture distributions

A humidity matrix easily generated and linked to a photo

Using the MultiMeasure Mobile app, minimum, maximum and average values can be displayed fully automatically, individual measured values can be marked directly within an image and elaborate graphic representations, e.g. a humidity matrix linked to a photo, can be created, saved and sent.

The measurement grid can be supplied with a real image background and later be displayed as image overlay with humidity matrix for documentation purposes, e.g. for your measurement report which can be generated and sent on site directly from the app.

For the matrix measurement with background image you can take a photo of the wall the to be measured directly from the app.

For the matrix measurement with background image you can take a photo of the wall the to be measured directly from the app.

Having determined all individual measuring points, you can use the saved measurement to generate a two-dimensional, coloured graphic representation of the humidity distribution as matrix.

Having determined all individual measuring points, you can use the saved measurement to generate a two-dimensional, coloured graphic representation of the humidity distribution as matrix.

For documentation purposes real image and humidity matrix can also be displayed as image overlay.

For documentation purposes real image and humidity matrix can also be displayed as image overlay.

What is an appSensor?

Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – data analysis and operation are realized almost entirely by means of the connected smartphone. Combined with the free app MultiMeasure Mobile this measuring device concept offers many compelling advantages.

All of Trotec's appSensors offer the following advantages:

  • Professional sensors for precise measuring results

  • Foolproof connection of the app via Bluetooth with visual connection confirmation by means of an LED at the device

  • Wireless control of the measuring devices and display of data via app

  • Simple measured value detection even at remote locations since the values do not have to be read directly from the measuring device

  • Additional determination and indication of minimum, maximum and average values

  • Hold, logging and alarm functions

  • Wrist strap for safe handling included in the scope of delivery

  • Practice-optimized German industrial design – protected design patent

Why use appSensors? Aren't there a lot of measuring apps already?

Of course there are numerous apps using the electronic components integrated in smartphones, e.g. microphone, gyroscope or camera, for measurements and derived calculations. But these components haven't been designed for precise metrological inspections, instead mainly for an optimized application on a mobile device.

Hence, the obtained results are not in the least comparable with the results achieved by sensors specifically designed for measuring applications. Besides, your smartphone may not be equipped with the suitable electronic component for every measurement task, e.g. for contact moisture measurements or non-contact temperature measurements.

Trotec appSensors on the other hand house professional sensors for precise measuring results –which is just what they were made for. So, be smart and use the clever combination of appSensor and MultiMeasure Mobile – our free app available for both iOS and Android – to carry out professional measurements.

MultiMeasure Mobile – all of the app's advantages at one glance

To control this appSensor via smartphone, you first have to download MultiMeasure Mobile – a free app for the operation, evaluation and measured value indication of all the appSensors connected to your mobile device.

MultiMeasure Mobile has numerous advantages in store for you:

Trotec BM31WP multimeasure-mobile-app-Restore Solutions AU.png
  • Automatic identification of appSensors

  • Simultaneous operation of several appSensors

  • Quick and intuitive navigation

  • Numerical measured value indication or else in form of a chart / matrix

  • Integrated report function for the documentation directly on site

  • PDA function for the organization of measurement data and documents

  • Customer management already integrated

  • Manifold analysis options directly in the app

  • Storage of measured values linked to photos

  • Matrix measurements, also linked to photos

  • Complete data synchronization with MultiMeasure Professional via cloud

The appSensor BM31WP is automatically identified by MultiMeasure  Mobile.

The appSensor BM31WP is automatically identified by MultiMeasure
Mobile.

In the appSensor's context menu you can switch over between cement screed and anhydrite screed and define alarm thresholds.

In the appSensor's context menu you can switch over between cement screed and anhydrite screed and define alarm thresholds.

Displayed in addition to the digit value are indicative values in M% and CM% for the preliminary check of a screed's readiness for covering.

Displayed in addition to the digit value are indicative values in M% and CM% for the preliminary check of a screed's readiness for covering.

In case of a humidity matrix measurement the app guides you through the entire measurement procedure one cell at a time.

In case of a humidity matrix measurement the app guides you through the entire measurement procedure one cell at a time.

MultiMeasure Mobile turns your mobile terminal device into a multifunctional measurement data management tool.
All appSensors are automatically identified by the app and can be connected to and read by MultiMeasure Mobile using Bluetooth. The operation is as simple and intuitive as the installation: Simply download MultiMeasure Mobile for free onto your mobile device – click on the FREE APP TAB to the iOS or Android download page.

BM31WP – A few practical benefits:

  • Quick and non-destructive indication of moisture distributions in near-surface areas

  • Useful pre-examination tool for CM measurements

  • High-quality sensor technology and numerous measuring functions

  • Intelligent combination of appSensor and The MultiMeasure Mobile app

  • Automatic switch-off

Appsensors

The perfect combination of the user comfort ensured by smartphone control and ultra-compact precision sensors which can be flexibly combined.


All of Trotec's appSensors offer the following advantages:

  • Professional sensors for precise measuring results

  • Foolproof connection of the app via Bluetooth with visual connection confirmation by means of an LED at the device

  • Wireless control of the measuring devices and display of data via app

  • Simple measured value detection even at remote locations since the values do not have to be read directly from the measuring device

  • Additional determination and indication of minimum, maximum and average values

  • Hold, logging and alarm functions

  • Wrist strap for safe handling included in the scope of delivery

  • Practice-optimized German industrial design – protected design patent

Our measurement technology – smart and state-of-the art
Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – data analysis and operation are realized almost entirely by means of the connected smartphone.

Combined with the free app MultiMeasure Mobile this measuring device concept offers many compelling advantages. All appSensors are automatically identified by the app and can be connected quickly and easily to a mobile terminal device using wireless technology.

From anemometer to thermohygrometer, moisture measuring device, pyrometer or sound level measuring device – Trotec's range of appSensors comprises various measuring devices for different tasks and is continuously enhanced.

Vane anemometer as appSensor controlled via smartphone

Vane anemometer as appSensor controlled via smartphone

Material moisture measuring device as appSensor controlled via smartphone

Material moisture measuring device as appSensor controlled via smartphone

Thermohygrometer as appSensor controlled via smartphone

Thermohygrometer as appSensor controlled via smartphone

Focussing on maximum diversity

With Trotec appSensors you can benefit from an equally flexible and convenient measuring device concept. Doing without display unit and evaluation electronics results in ultra-compact measuring instruments nonetheless equipped with professional sensors. They are characterized by an especially attractive value-for-money ratio and can be flexibly combined for various fields of application.

The compact design of our appSensors fits all the measurement technology you need into a neat, space-saving solution that can be carried along conveniently.

The uniform control concept via a central app simplifies handling, ensures a consistently high user comfort and reduces the familiarisation period required for further newly purchased appSensors. Furthermore, the app offers additional functions which are normally only included in case of significantly more expensive measuring devices.

Technical data

Technical data
General information
  Article number 3.510.206.031
Material moisture [digits]
  Min. measuring range | Material moisture [Digit] 0
  Resolution [Digit] 0.1
  Measuring principle Dielectric / capacitive
  Max. measuring range | Material moisture [Digit] 100
Ambient conditions
  Operation - min. temperature [°C] 0
  Operation - max. temperature [°C] 50
  Operation – min. relative humidity [% r.F.] 10
  Operation - max. relative humidity [% r.F.] 90
  Relative humidity during storage [%] <� 80% RH
Bluetooth
  4.0 (BLE)
  Max. transmission range 10 m in open terrain
Dimensions
  Length (packaging excluded) [mm] 22
  Width (packaging excluded) [mm] 36
  Height (packaging excluded) [mm] 160
Weight
  (packaging excluded) [kg] 0.093

Accessories



Downloads

Operating manual for the Trotec BM31WP Moisture Indicator (EN)



Free app

MULTIMEASURE MOBILE APP

A smart app turning you mobile device into the control centre for a complete professional measuring system

MultiMeasure Mobile is the control centre of a professional measuring system comprising individual appSensors centrally controlled via app.

Trotec AUstralia multimeasure-mobile-versatile-app-for-the-operation-evaluation-and-measured-value-indication-of-all-trotec-appsensors.jpg

Download the free MultiMeasure Mobile in the app store:




MultiMeasure Mobile – all of the app's advantages at one glance:

  • Automatic identification of appSensors

  • Simultaneous operation of several appSensors

  • Quick and intuitive navigation

  • Numerical measured value indication or else in form of a chart / matrix

  • Integrated report function for the documentation directly on site

  • PDA function for the organization of measurement data and documents

  • Customer management already integrated

  • Manifold analysis options directly in the app

  • Storage of measured values linked to photos

  • Matrix measurements, also linked to photos

  • Complete data synchronization with MultiMeasure Professional via cloud

Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – the data analysis and operation are realized almost entirely by means of the app installed on the mobile terminal device.

MultiMeasure Mobile does not simply function as digital unit for the measured value indication of the appSensors connected via Bluetooth. Owing to the clever combination of appSensor and appertaining, free MultiMeasure Mobile app users can further benefit from numerous additional advantages in terms of flexibility, analysis functions, data control and documentation otherwise only featured by way more expensive measuring devices.

This way, other important physical climate parameters can be calculated, displayed and saved in addition to the data determined by the measuring device. Depending on the applied appSensor, the parameters can include the dew point temperature, the critical dew point, the absolute or specific humidity. Of course, the minimum, maximum and average values will be displayed along with the current measured value.

Trotec AUstralia multimeasure-mobile-versatile-app.JPG

MultiMeasure Mobile for more options

MultiMeasure Mobile not only permanently records all the values measured by the connected appSensors which can then be optionally displayed either numerically or in form of a chart – by means of the logging function, the values can also be recorded as a measurement series.

In addition to typical professional analysis options and the smart measurement data linkage of the simultaneously connected appSensors the app MultiMeasure Mobile further offers a still greater number of innovative functions such as matrix measurements or linking measuring points to photos: Just take a photo, mark the position of the measuring point on it, carry out the measurement and then save it all. All measuring points and data remain linked to the photo for later analysis and can also be prepared as coloured matrix representation e.g. to indicate the distribution of moisture or heat.

All of the measurement data captured by the connected appSensor will be displayed clearly legible on your mobile terminal device.

All of the measurement data captured by the connected appSensor will be displayed clearly legible on your mobile terminal device.

By tapping on the screen you can display measured values in form of a chart or use the logging function and record them as a measurement series.

By tapping on the screen you can display measured values in form of a chart or use the logging function and record them as a measurement series.

From report generation to customer management – a complete measurement data management solution is already integrated

Using the integrated customer management function all of the measured data can be assigned to projects and clients via the app. The built-in report function further facilitates a quick on-site documentation.

Moreover, it is possible to share measurements and project data with colleagues in another subsidiary. If MultiMeasure Studio Professional is installed on a PC, you can even use report templates and ready-made text blocks for various fields of application to turn the data into professional reports. With the combination of MultiMeasure Mobile app and appSensors you have all the measuring instruments possibly required for the application on a construction site or at the customer's.

Using MultiMeasure Mobile you can perform humidity distribution measurements, link the results to photos and save and send them in form of a graphically expressive humidity matrix.

Using MultiMeasure Mobile you can perform humidity distribution measurements, link the results to photos and save and send them in form of a graphically expressive humidity matrix.

Saved measurements can be edited with various parameters, exported and included in reports. The reports can be generated directly from the app, linked to customer data and sent.

Saved measurements can be edited with various parameters, exported and included in reports. The reports can be generated directly from the app, linked to customer data and sent.
