Description

BP21WP PYROMETER

Infrared pyrometer as appSensor controlled via smartphone

The appSensor BP21WP is a pyrometer permitting non-contact, infrared surface temperature measurements when used in combination with the MultiMeasure Mobile app.

The equipment was designed for a universal range of applications and a convenient measured value determination. In addition to an optical resolution of 10:1 and a temperature measuring range between -30 °C and +250 °C the BP21WP also features a useful multi-point laser which automatically visualizes the size of the measuring spot. The preset degree of emission saves you the trouble of making manual adjustments and covers a wide variety of materials. The measuring device BP21WP is immediately ready for use, it can be connected to the app without the slightest effort and then displays all the measured values on the mobile terminal device.

Compared to pyrometers without app users of the BP21WP benefit from the clever combination of appSensor and appertaining, free MultiMeasure Mobile app with numerous additional advantages in terms of flexibility, analysis functions, data control and documentation otherwise only featured by way more expensive measuring devices. One option is the multi-coloured graphic representation of temperature curves or of the temperature distribution on a wall by means of a matrix measurement.

With MultiMeasure Mobile you can make use of further functions and analysis options: in addition to the indication of minimum, maximum and average values you can enter individual limit values – exceeding or falling below these thresholds automatically triggers an acoustic alarm.

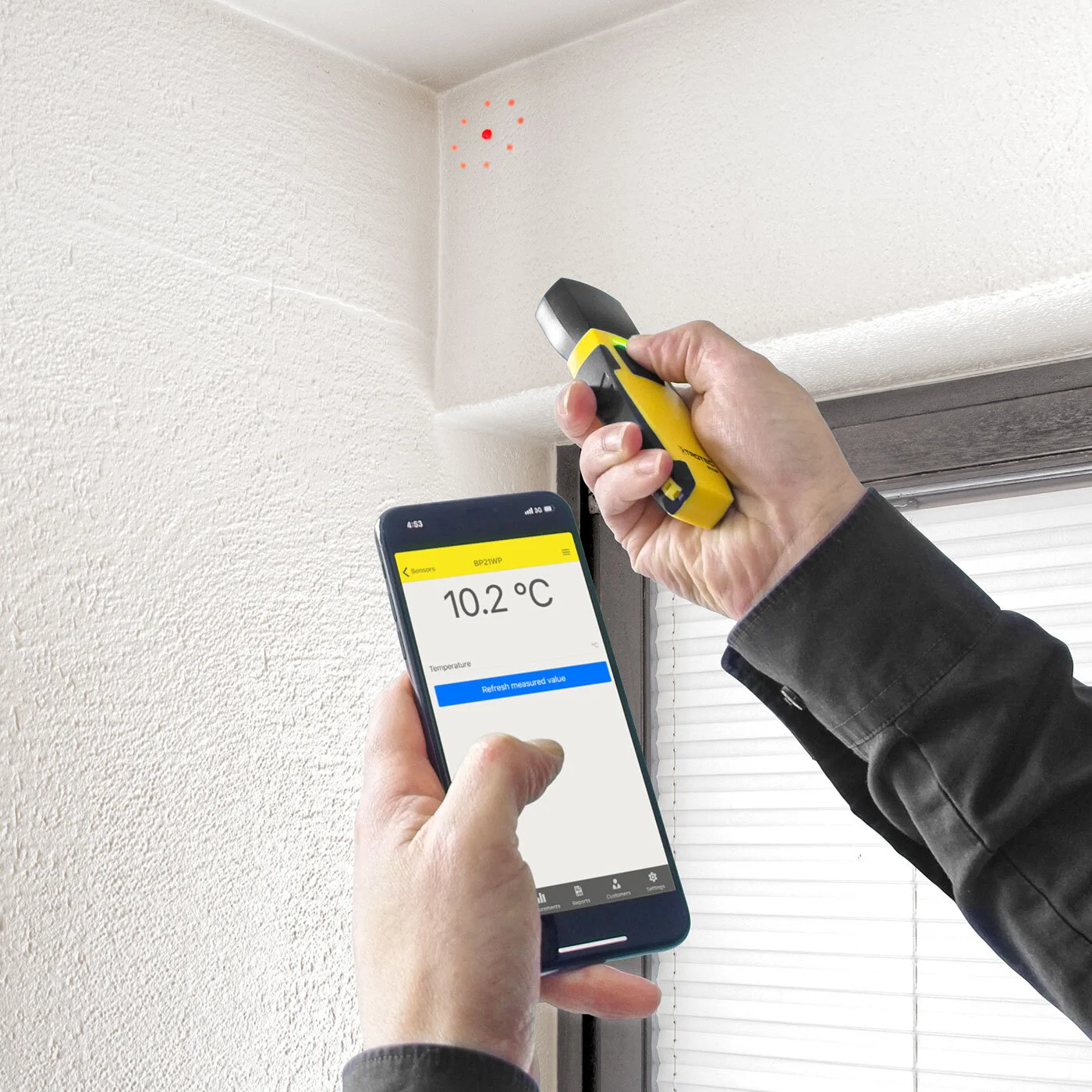

You can compare different temperature values measured for the same object at different points in time directly in the app or use the appSensor in combination with a simultaneously connected thermohygrometer BC21WP for a differentiated dew point control.

What is an appSensor?

Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – data analysis and operation are realized almost entirely by means of the connected smartphone. Combined with the free app MultiMeasure Mobile this measuring device concept offers many compelling advantages.

All of Trotec's appSensors offer the following advantages:

• Professional sensors for precise measuring results

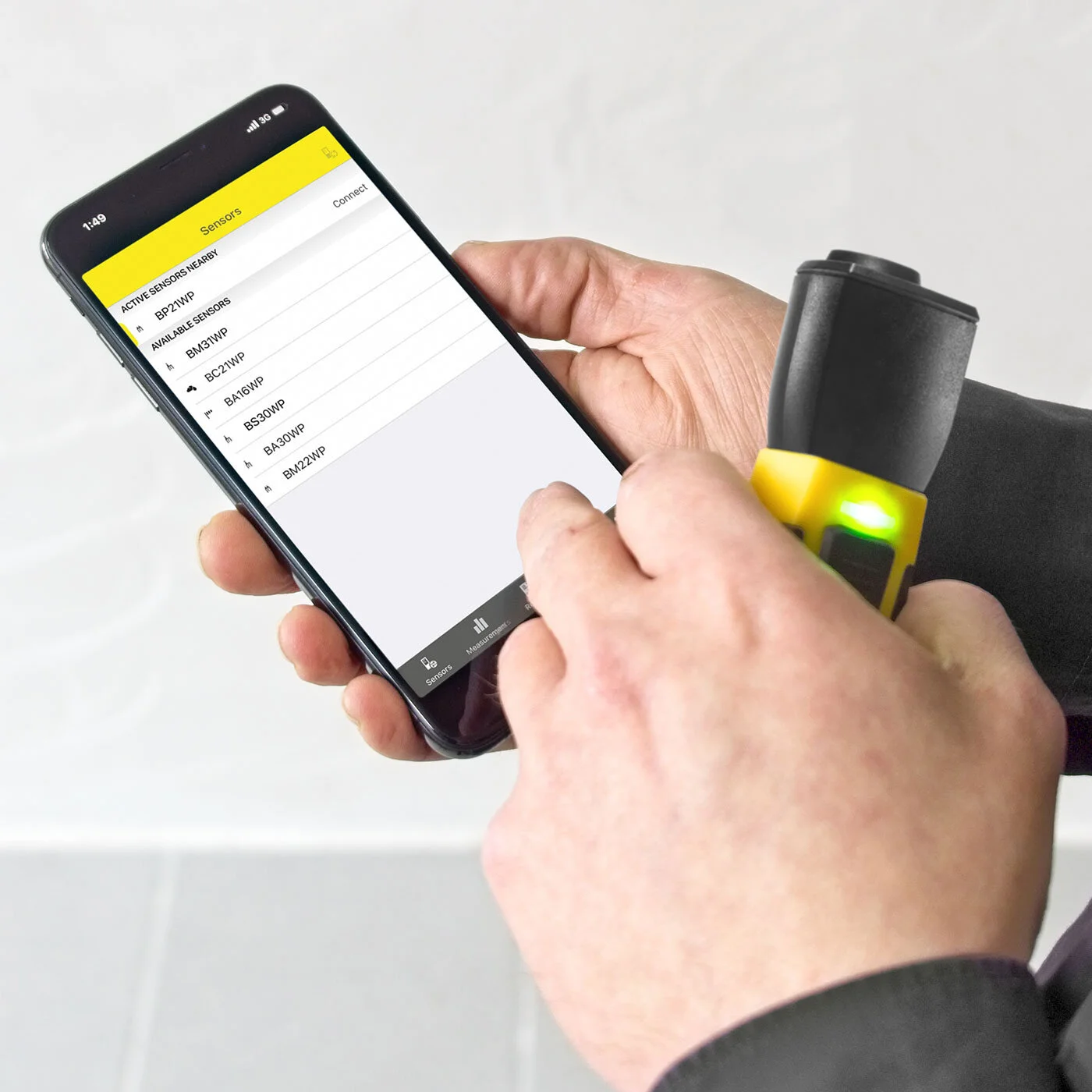

• Foolproof connection of the app via Bluetooth with visual connection confirmation by means of an LED at the device

• Wireless control of the measuring devices and display of data via app

• Simple measured value detection even at remote locations since the values do not have to be read directly from the measuring device

• Additional determination and indication of minimum, maximum and average values

• Hold, logging and alarm functions

• Wrist strap for safe handling included in the scope of delivery

• Practice-optimized German industrial design – protected design patent

Why use appSensors? Aren't there a lot of measuring apps already?

Of course there are numerous apps using the electronic components integrated in smartphones, e.g. microphone, gyroscope or camera, for measurements and derived calculations. But these components haven't been designed for precise metrological inspections, instead mainly for an optimized application on a mobile device.

Hence, the obtained results are not in the least comparable with the results achieved by sensors specifically designed for measuring applications. Besides, your smartphone may not be equipped with the suitable electronic component for every measurement task, e.g. for contact moisture measurements or non-contact temperature measurements.

Trotec appSensors on the other hand house professional sensors for precise measuring results –which is just what they were made for. So, be smart and use the clever combination of appSensor and MultiMeasure Mobile – our free app available for both iOS and Android – to carry out professional measurements.

MultiMeasure Mobile – all of the app's advantages at one glance

To control this appSensor via smartphone, you first have to download MultiMeasure Mobile – a free app for the operation, evaluation and measured value indication of all the appSensors connected to your mobile device.

MultiMeasure Mobile has numerous advantages in store for you:

• Automatic identification of appSensors

• Simultaneous operation of several appSensors

• Quick and intuitive navigation

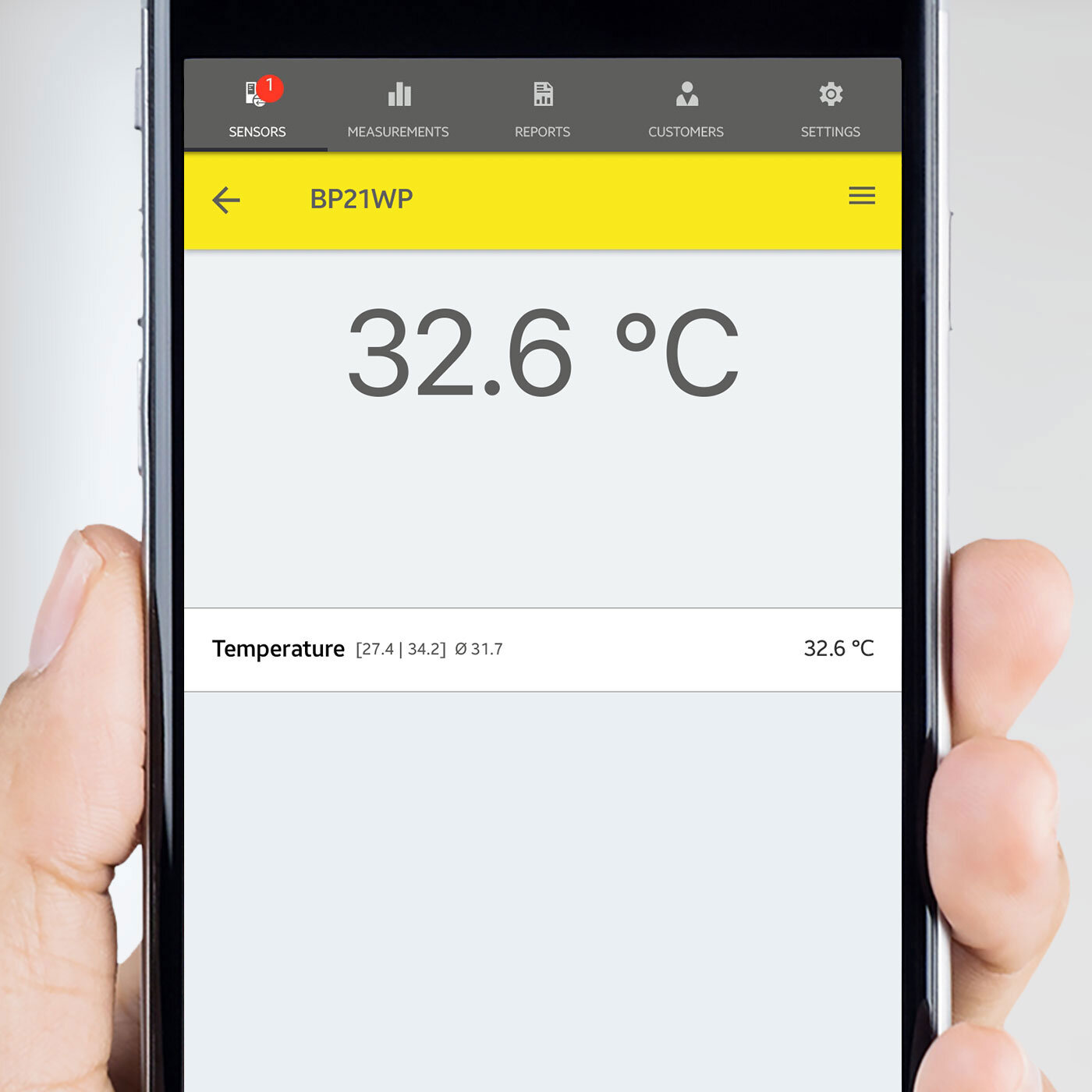

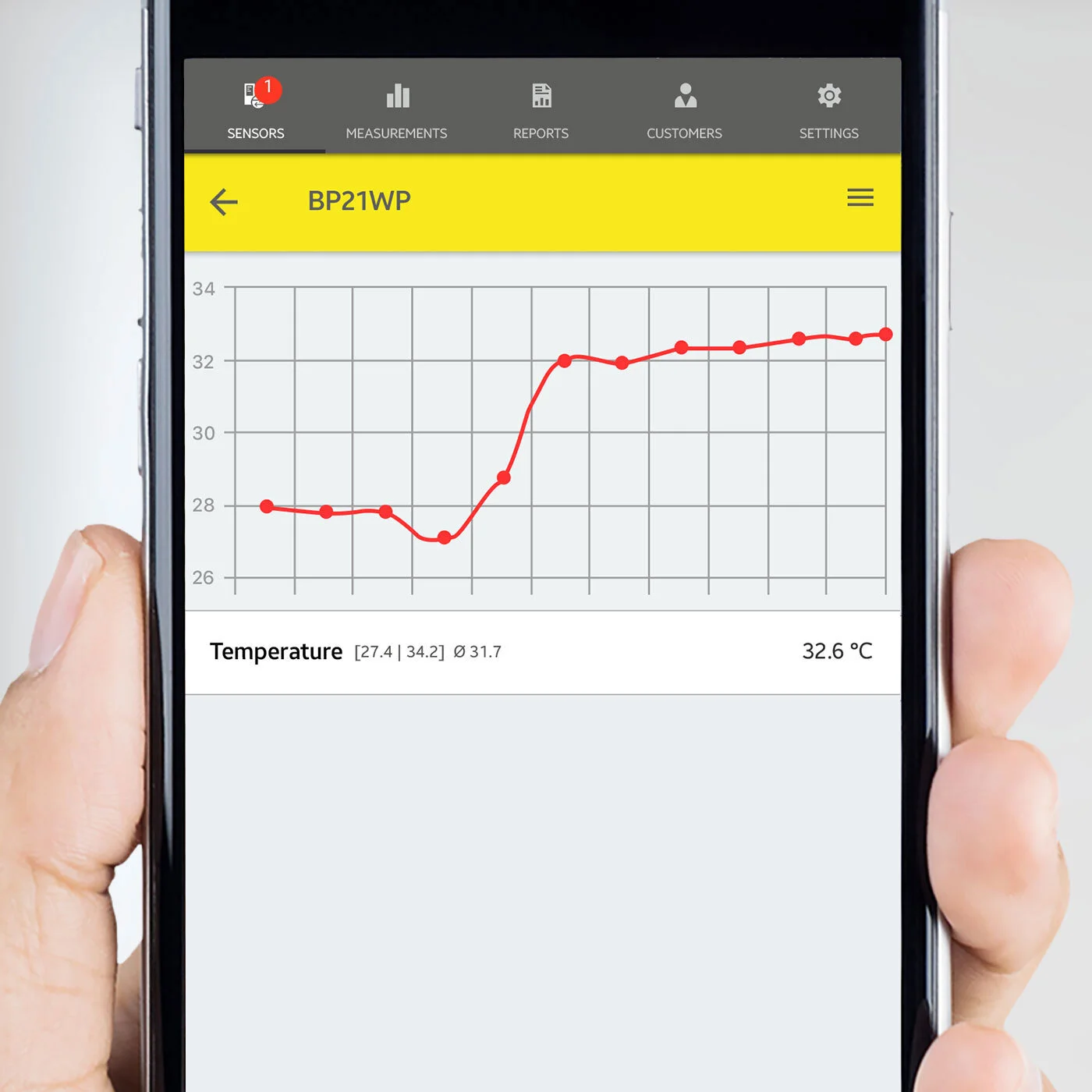

• Numerical measured value indication or else in form of a chart / matrix

• Integrated report function for the documentation directly on site

• PDA function for the organization of measurement data and documents

• Customer management already integrated

• Manifold analysis options directly in the app

• Storage of measured values linked to photos

• Matrix measurements, also linked to photos

• Complete data synchronization with MultiMeasure Professional via cloud

MultiMeasure Mobile turns your mobile terminal device into a multifunctional measurement data management tool.
All appSensors are automatically identified by the app and can be connected to and read by MultiMeasure Mobile using Bluetooth. The operation is as simple and intuitive as the installation: Simply download MultiMeasure Mobile for free onto your mobile device – click on the FREE APP TAB to the iOS or Android download page.

BP21WP – A few practical benefits:

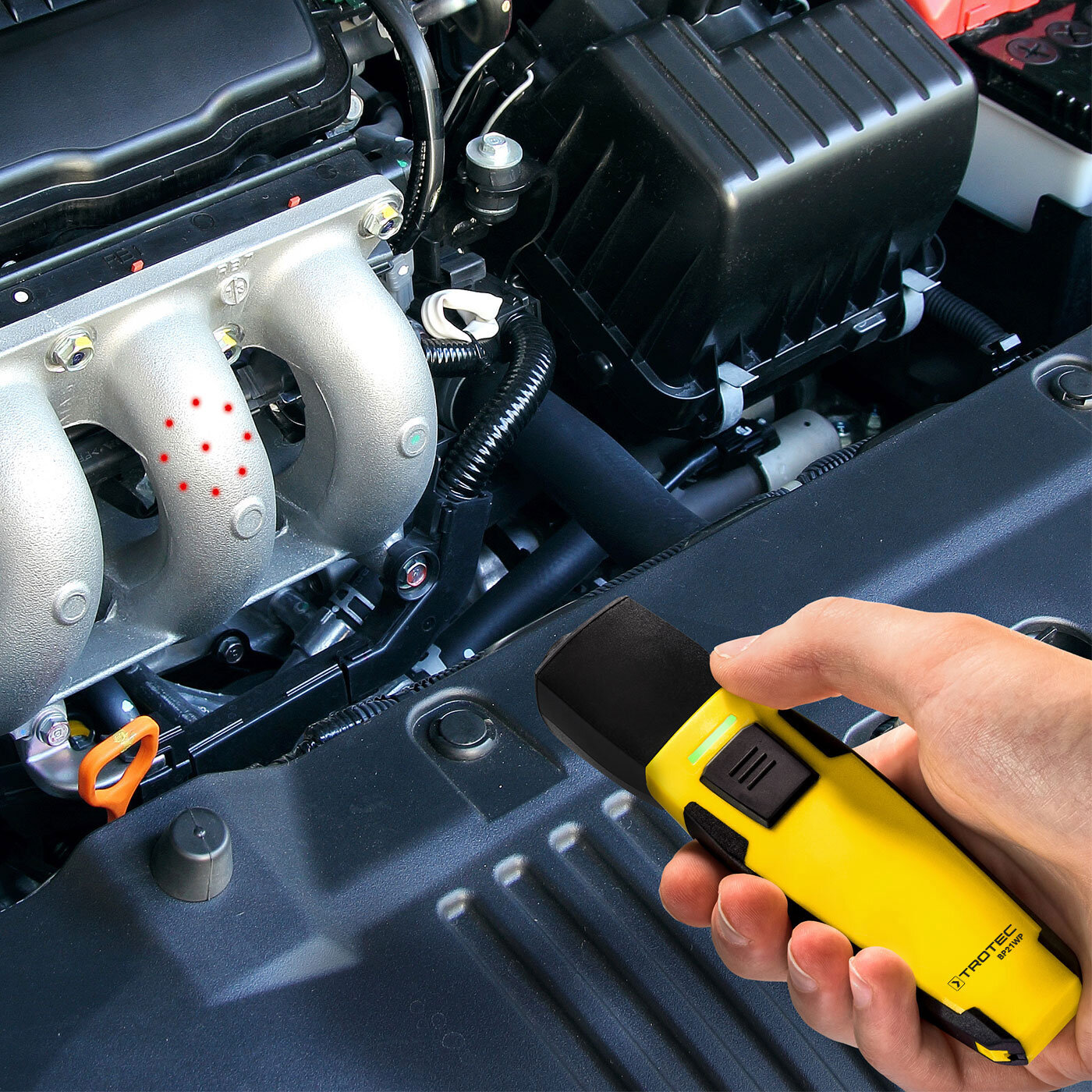

• Non-contact surface temperature measurement from -30 °C to +250 °C

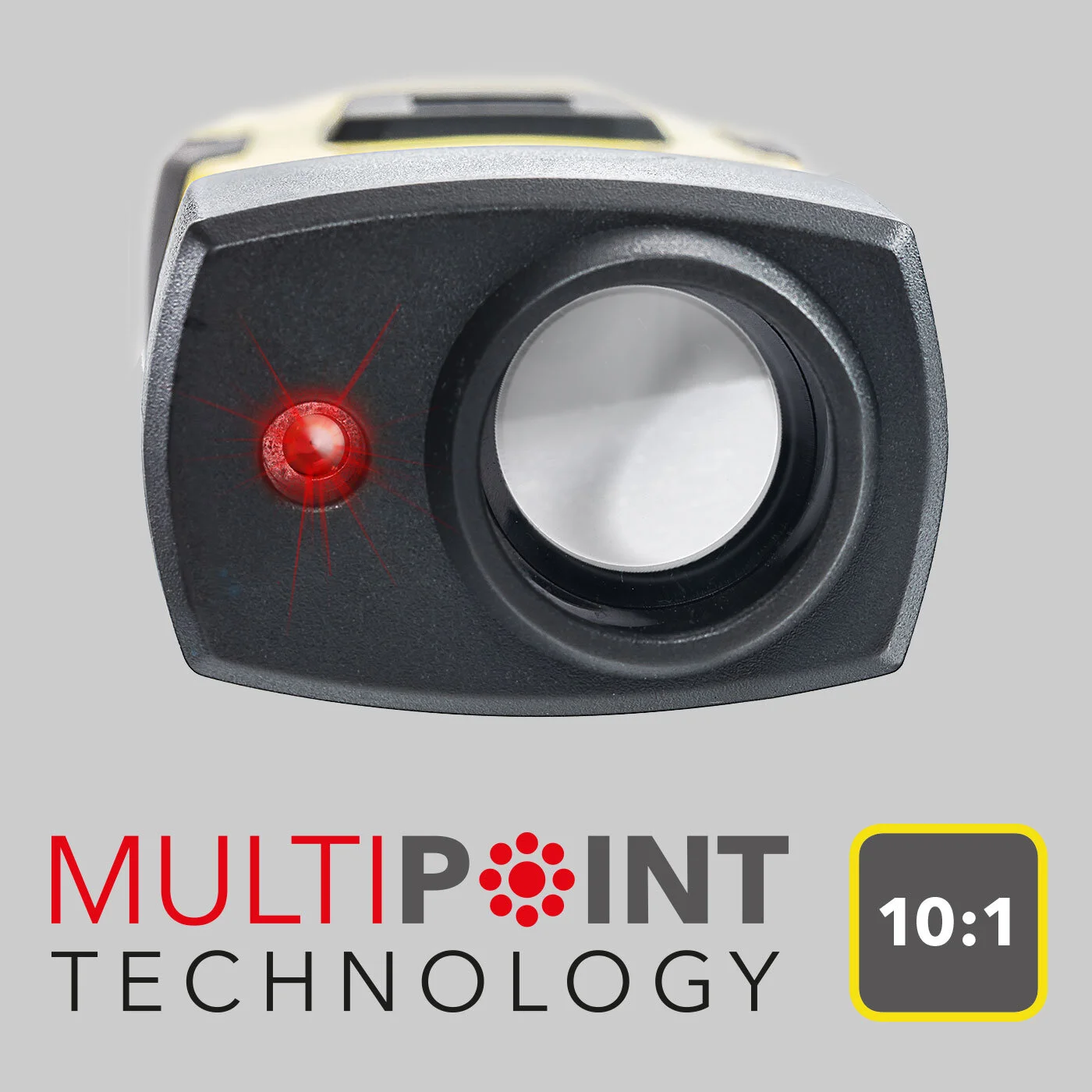

• Multi-point laser

• Measuring optics 10:1

• High-quality sensor technology and numerous measuring functions

• Intelligent combination of appSensor and The MultiMeasure Mobile app

• Automatic switch-off

Appsensors

The perfect combination of the user comfort ensured by smartphone control and ultra-compact precision sensors which can be flexibly combined.

All of Trotec's appSensors offer the following advantages:

• Professional sensors for precise measuring results

• Foolproof connection of the app via Bluetooth with visual connection confirmation by means of an LED at the device

• Wireless control of the measuring devices and display of data via app

• Simple measured value detection even at remote locations since the values do not have to be read directly from the measuring device

• Additional determination and indication of minimum, maximum and average values

• Hold, logging and alarm functions

• Wrist strap for safe handling included in the scope of delivery

• Practice-optimized German industrial design – protected design patent

Our measurement technology – smart and state-of-the art
Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – data analysis and operation are realized almost entirely by means of the connected smartphone.

Combined with the free app MultiMeasure Mobile this measuring device concept offers many compelling advantages. All appSensors are automatically identified by the app and can be connected quickly and easily to a mobile terminal device using wireless technology.

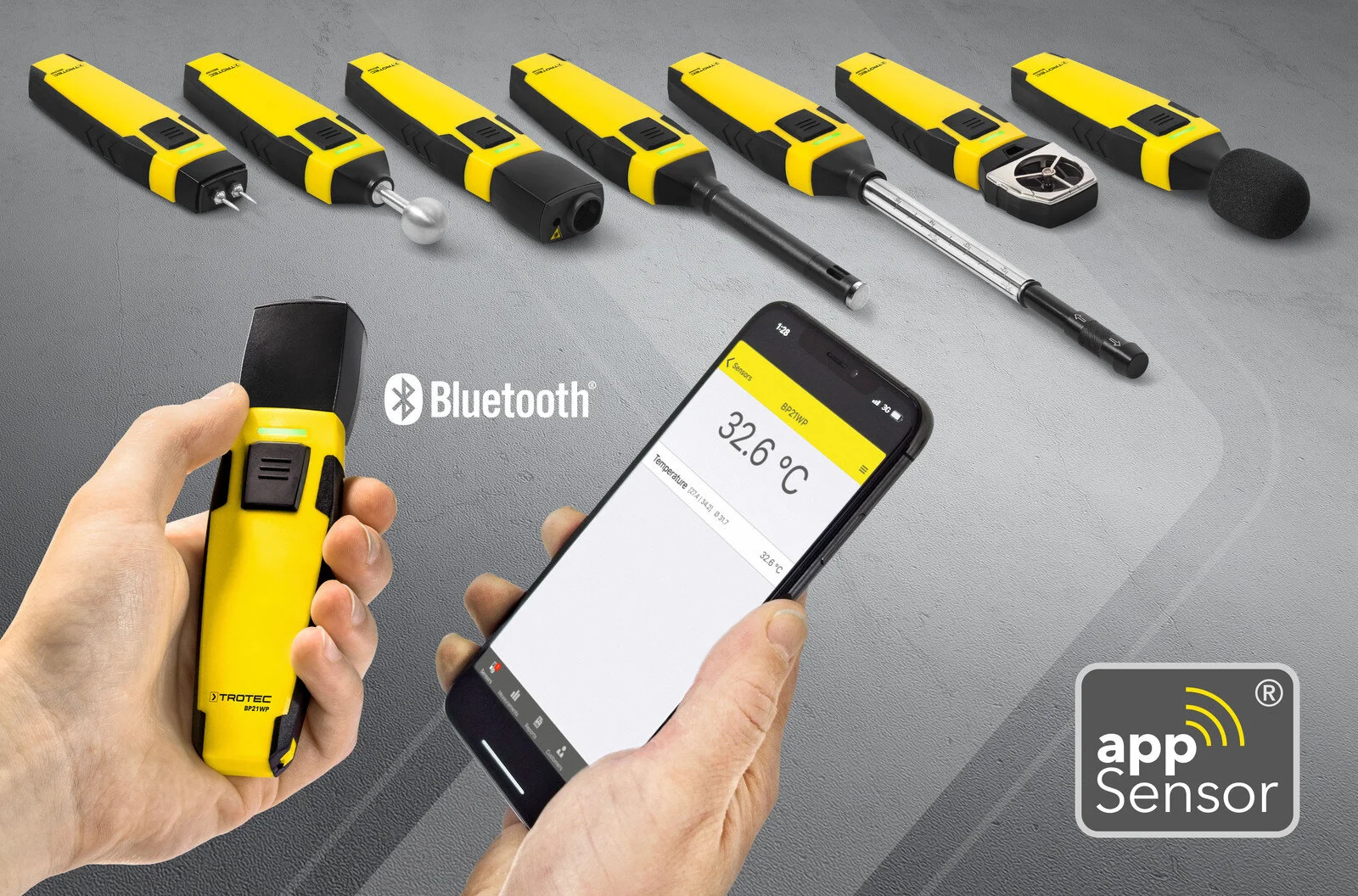

From anemometer to thermohygrometer, moisture measuring device, pyrometer or sound level measuring device – Trotec's range of appSensors comprises various measuring devices for different tasks and is continuously enhanced.

Focussing on maximum diversity

With Trotec appSensors you can benefit from an equally flexible and convenient measuring device concept. Doing without display unit and evaluation electronics results in ultra-compact measuring instruments nonetheless equipped with professional sensors. They are characterized by an especially attractive value-for-money ratio and can be flexibly combined for various fields of application.

The compact design of our appSensors fits all the measurement technology you need into a neat, space-saving solution that can be carried along conveniently.

The uniform control concept via a central app simplifies handling, ensures a consistently high user comfort and reduces the familiarisation period required for further newly purchased appSensors. Furthermore, the app offers additional functions which are normally only included in case of significantly more expensive measuring devices.

Technical data

Accessories

Downloads

Operating manual for the Trotec BP21WP Pyrometer (EN)

Free app

MULTIMEASURE MOBILE APP

A smart app turning you mobile device into the control centre for a complete professional measuring system

MultiMeasure Mobile is the control centre of a professional measuring system comprising individual appSensors centrally controlled via app.

Download the free MultiMeasure Mobile in the app store:

MultiMeasure Mobile – all of the app's advantages at one glance:

• Automatic identification of appSensors

• Simultaneous operation of several appSensors

• Quick and intuitive navigation

• Numerical measured value indication or else in form of a chart / matrix

• Integrated report function for the documentation directly on site

• PDA function for the organization of measurement data and documents

• Customer management already integrated

• Manifold analysis options directly in the app

• Storage of measured values linked to photos

• Matrix measurements, also linked to photos

• Complete data synchronization with MultiMeasure Professional via cloud

Trotec appSensors are compact precision measuring devices with high-quality sensors. Designed in a way to save space and energy, they have neither display unit nor evaluation electronics – the data analysis and operation are realized almost entirely by means of the app installed on the mobile terminal device.

MultiMeasure Mobile does not simply function as digital unit for the measured value indication of the appSensors connected via Bluetooth. Owing to the clever combination of appSensor and appertaining, free MultiMeasure Mobile app users can further benefit from numerous additional advantages in terms of flexibility, analysis functions, data control and documentation otherwise only featured by way more expensive measuring devices.

This way, other important physical climate parameters can be calculated, displayed and saved in addition to the data determined by the measuring device. Depending on the applied appSensor, the parameters can include the dew point temperature, the critical dew point, the absolute or specific humidity. Of course, the minimum, maximum and average values will be displayed along with the current measured value.

MultiMeasure Mobile for more options

MultiMeasure Mobile not only permanently records all the values measured by the connected appSensors which can then be optionally displayed either numerically or in form of a chart – by means of the logging function, the values can also be recorded as a measurement series.

In addition to typical professional analysis options and the smart measurement data linkage of the simultaneously connected appSensors the app MultiMeasure Mobile further offers a still greater number of innovative functions such as matrix measurements or linking measuring points to photos: Just take a photo, mark the position of the measuring point on it, carry out the measurement and then save it all. All measuring points and data remain linked to the photo for later analysis and can also be prepared as coloured matrix representation e.g. to indicate the distribution of moisture or heat.

From report generation to customer management – a complete measurement data management solution is already integrated

Using the integrated customer management function all of the measured data can be assigned to projects and clients via the app. The built-in report function further facilitates a quick on-site documentation.

Moreover, it is possible to share measurements and project data with colleagues in another subsidiary. If MultiMeasure Studio Professional is installed on a PC, you can even use report templates and ready-made text blocks for various fields of application to turn the data into professional reports. With the combination of MultiMeasure Mobile app and appSensors you have all the measuring instruments possibly required for the application on a construction site or at the customer's.
