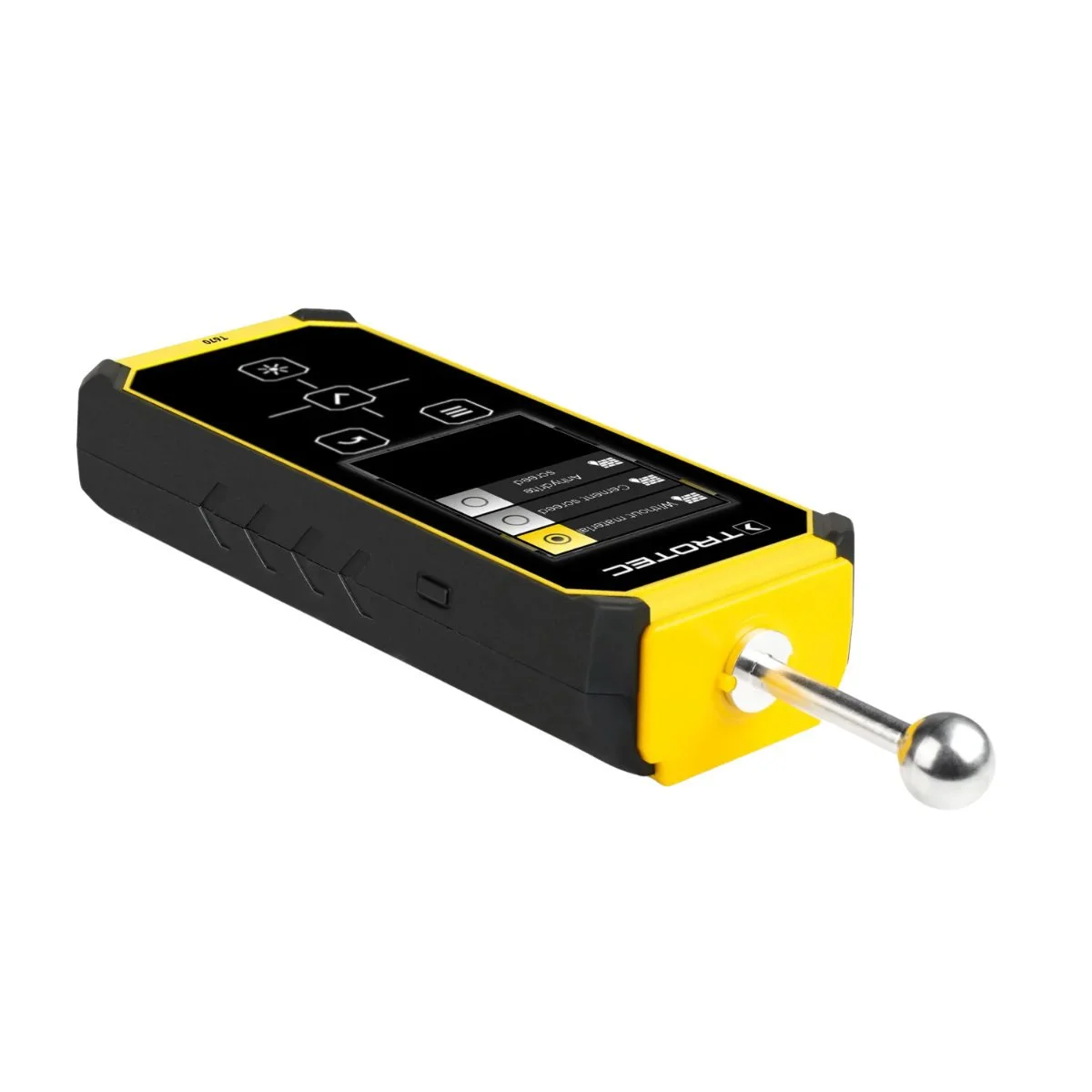

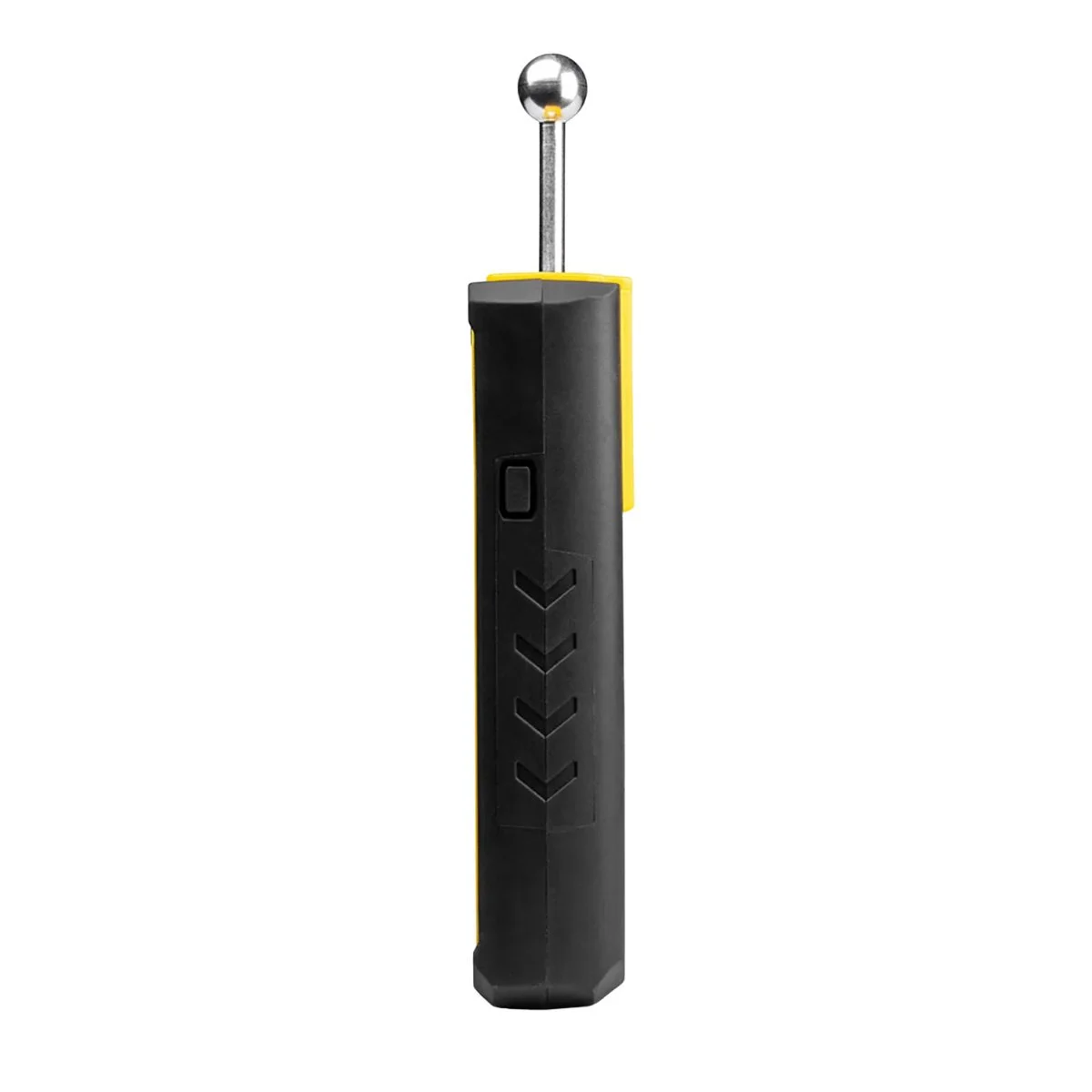

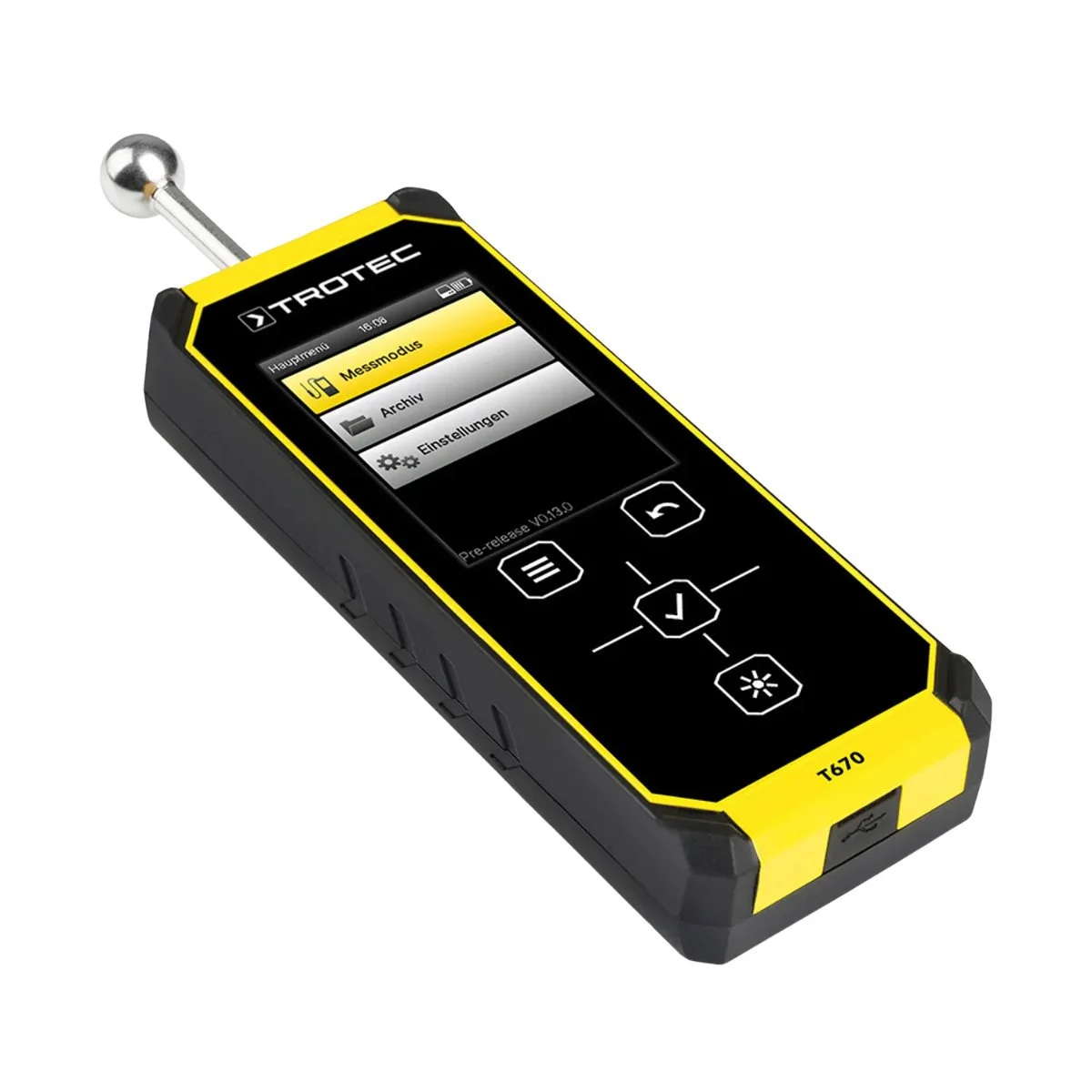

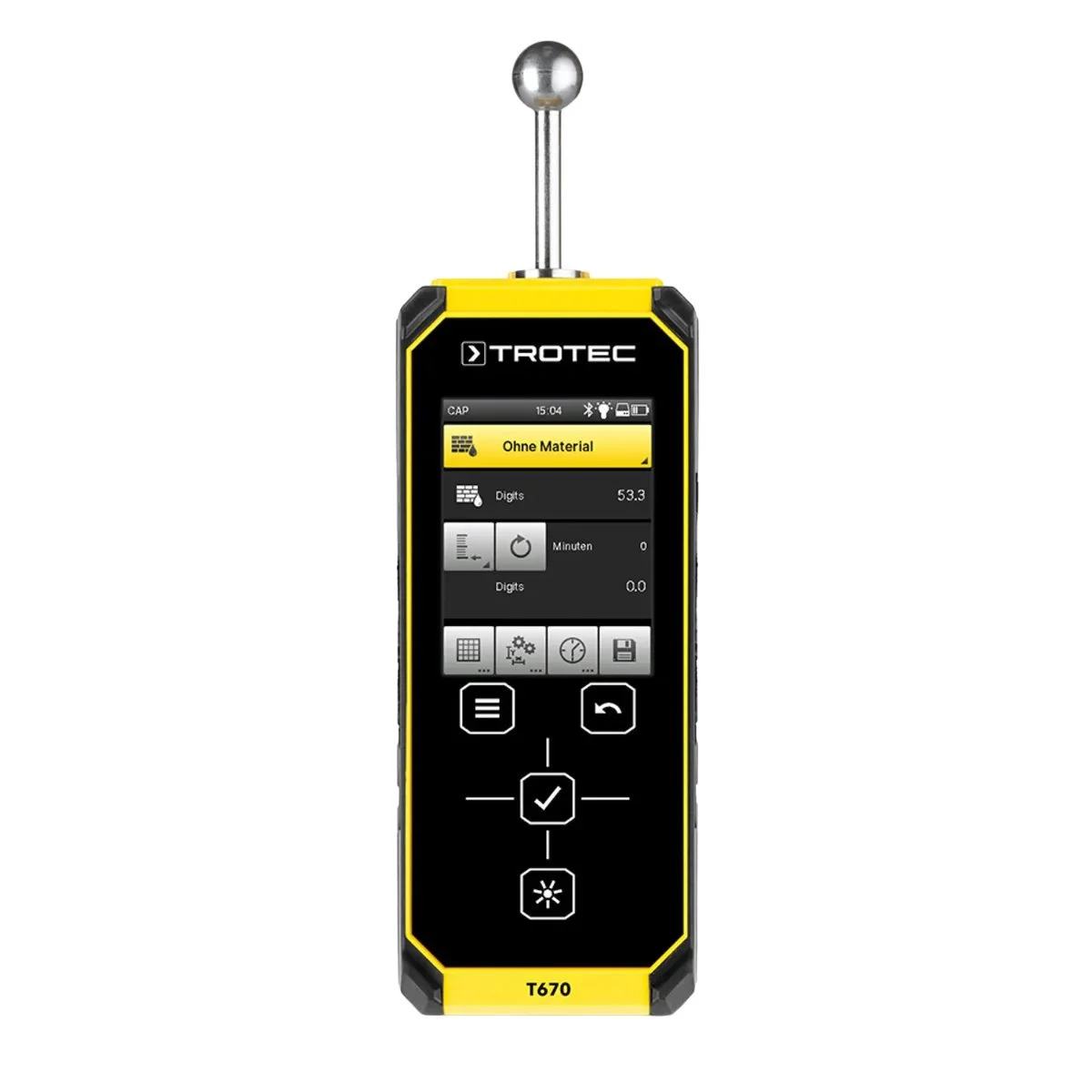

T670 – Capacitive Moisture Meter
The T670 is a capacitive moisture meter for fast, non-destructive measurements. The standalone device detects surface-near moisture in walls, floors, and ceilings without drilling holes.
Fast and non-destructive

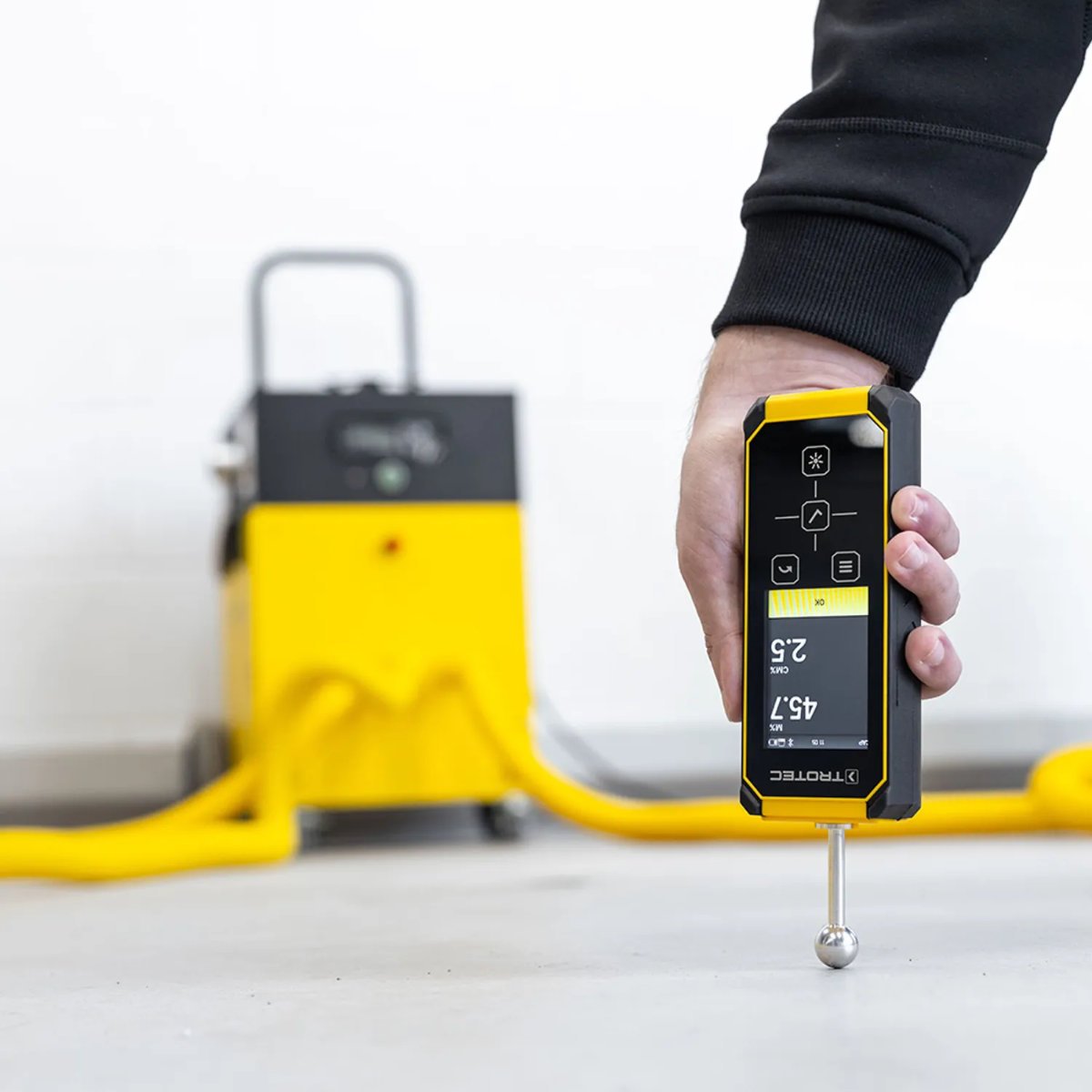

Simply hold the device against the surface, read the value – done. The capacitive measuring principle detects moisture up to 4 cm deep and displays indicative values. Ideal for quick checks of large areas, initial damage assessments, and preliminary tests before detailed measurements.
Colour-coded moisture maps
The T670 creates grid measurements with up to 2,000 measuring points (50 × 40 grid). The colour-coded matrix shows at a glance where moisture is located and how far it has spread. Visually and clearly show your customer where the problem lies.
With free app
The MultiMeasure Mobile App (iOS & Android) transfers measurement values via Bluetooth to the smartphone. Link measurements with photos, create PDF reports on site, and manage projects in an organised way. The device also works completely without the app – all functions are directly available.
Intelligent functions

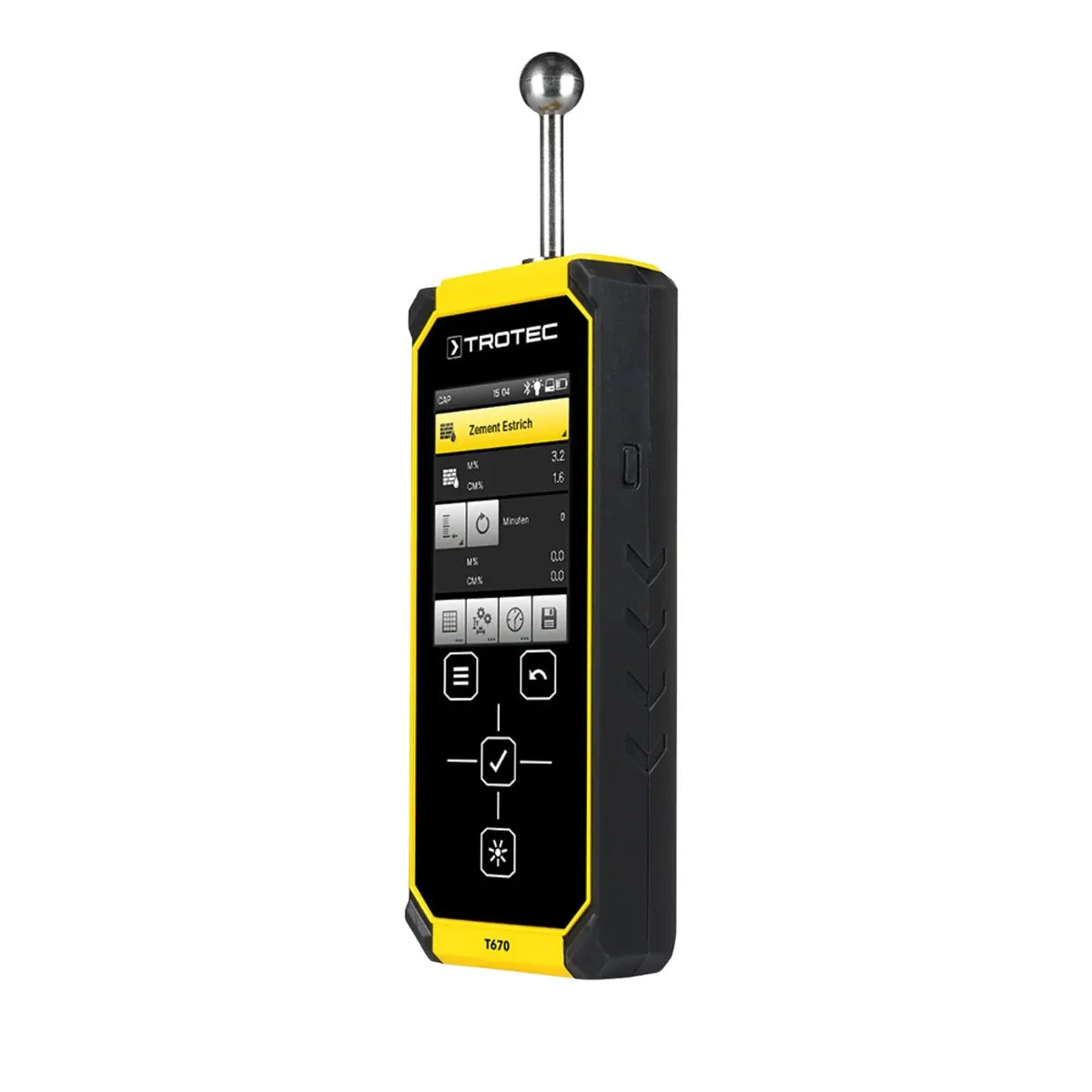

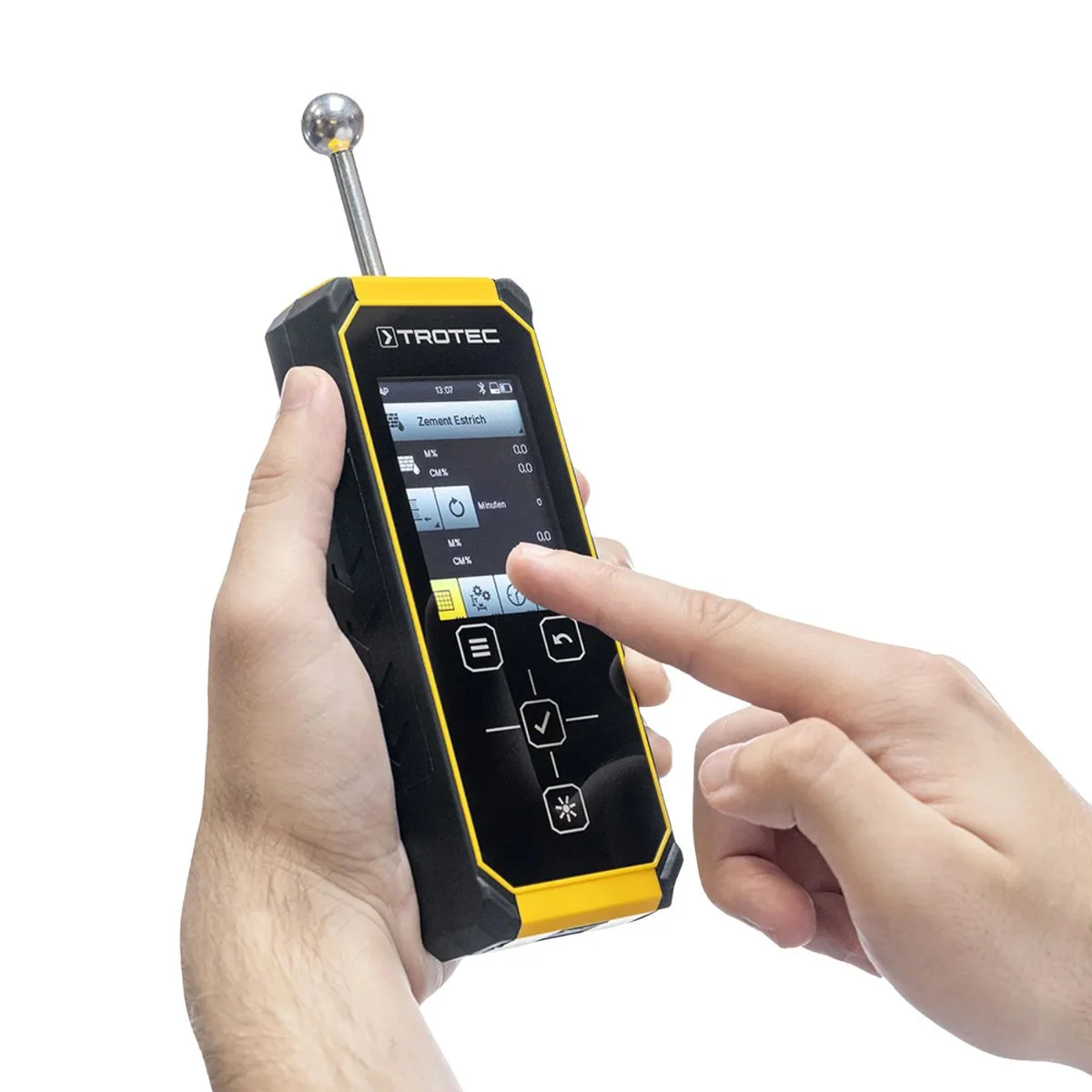

The T670 offers long-term data logging with an alarm function for limit value exceedance. The internal memory can be expanded with a microSD card for practically unlimited storage capacity. Special material programmes for anhydrite and cement screed assist in assessing readiness for covering. The 2.7" colour touchscreen display with highly scratch-resistant Panda Glass shows measurement values clearly and legibly. The screenshot function allows photographic documentation directly on the display, while XY diagrams and table views facilitate the evaluation of measurement trends.
Areas of application
The T670 is suitable for building diagnostics, water damage restoration, timber trade, property management, and screed testing.
Accessories
Download
T670 Moisture Meter – Operating Manual
T670 Moisture Meter – Quick Guide
Software
Download the free version of the software from the Trotec website: MultiMeasure Studio analysis software 2.0 - 607 KB
*Please note when installing the software the first screen is in German and it is asking you to agree to the terms which are just standard Microsoft terms and conditions allowing the Trotec software the run. The left hand hand button "ich stimme zu" is I agree and "ich stimme nicht zu" is I don't agree, you must select "ich stimme zu" to proceed with installing the software.
Or purchase the pro version here MultiMeasure Studio Professional
Technical data
| Product identification | |
|---|---|
| SKU | 3510207651 |
| Product- and freight dimensions | |
| Net width [mm] | 64 mm |
| Net length [mm] | 35 mm |
| Net height [mm] | 210 mm |
| Net weight [kg] | 0.32 kg |
| Gross weight [kg] | 0.55 kg |
| Gross width [mm] | 100 mm |
| Gross length [mm] | 67 mm |
| Gross height [mm] | 250 mm |
| Other dimensions | |
| Diameter of sensor element [mm] | 16 |
| Technical data | |
| Display | TFT_color |
| Data memory | interner Flash und micro-SD-Karte |
| Penetration depth [mm] max. | 40 |
| Conditions during operation, storage, and in the working environment | |
| Operation - max. temperature [°C] | 55 |
| Operation - min. temperature [°C] | -20 |
| Operation - max. rel. humidity (non-condensing) [%] | 90 |
| Operation [% r.h.] | min. rel. humidity (non-condensing) | 0 |
